Product Parameters
The main parameters
model: AS-4.0
Dimensions (L×W×H): 7700×2750×3350
Wheelbase(mm): 2750
Machine weight (kg): 8250
Maximum speed (km/h): 35
Maximum climbing ability (°): 35
Minimum turning radius (mm): 4050
Minimum ground clearance (mm): 350
Engine power(kw): 85
Fuel tank capacity (L): 120
Total capacity of hydraulic system (L): 120
Engine oil (L): 16
Water tank capacity(L): 800
Water supply method: Time relays and mechanical relays
Geometric capacity of mixing tank (L): 6800
Mixing tank speed (r/min): 17
Product Details
Product Introduction

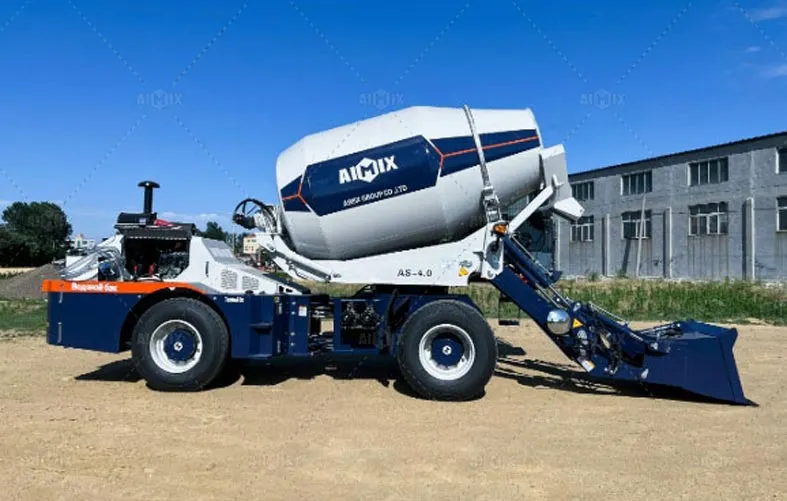

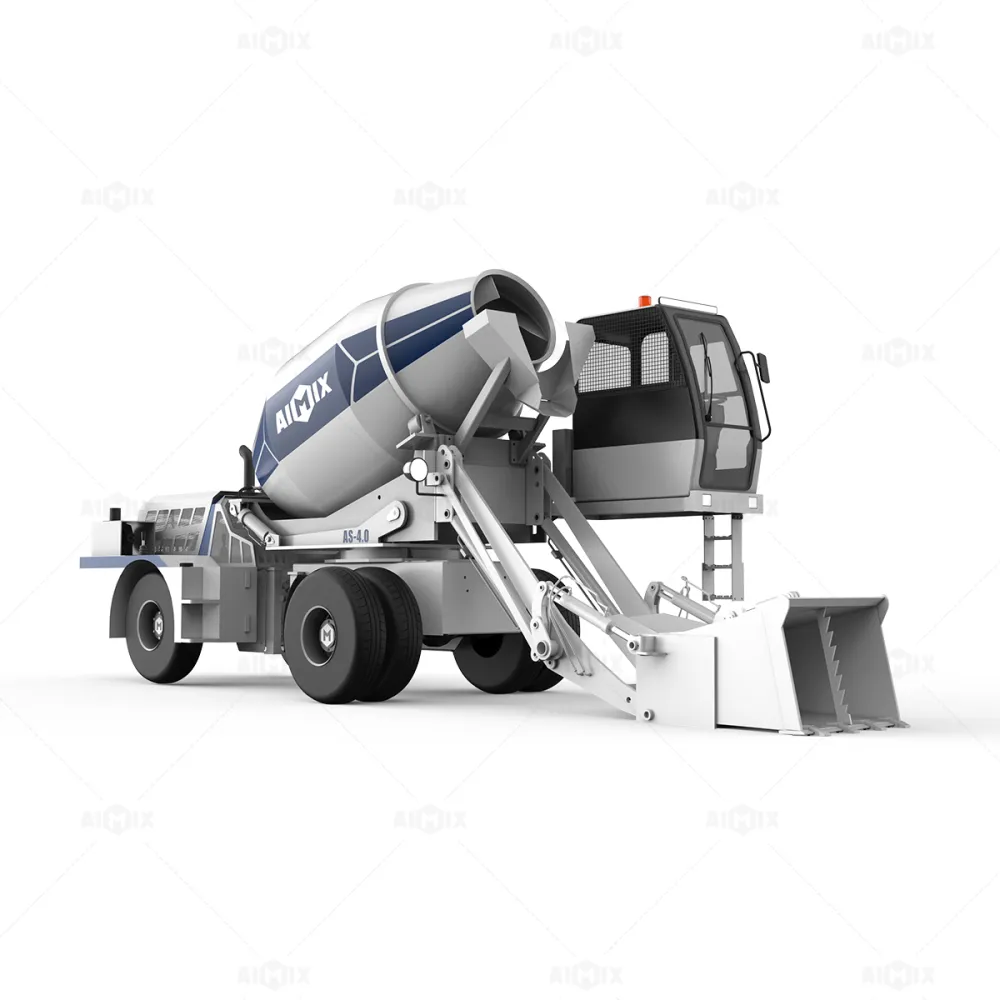

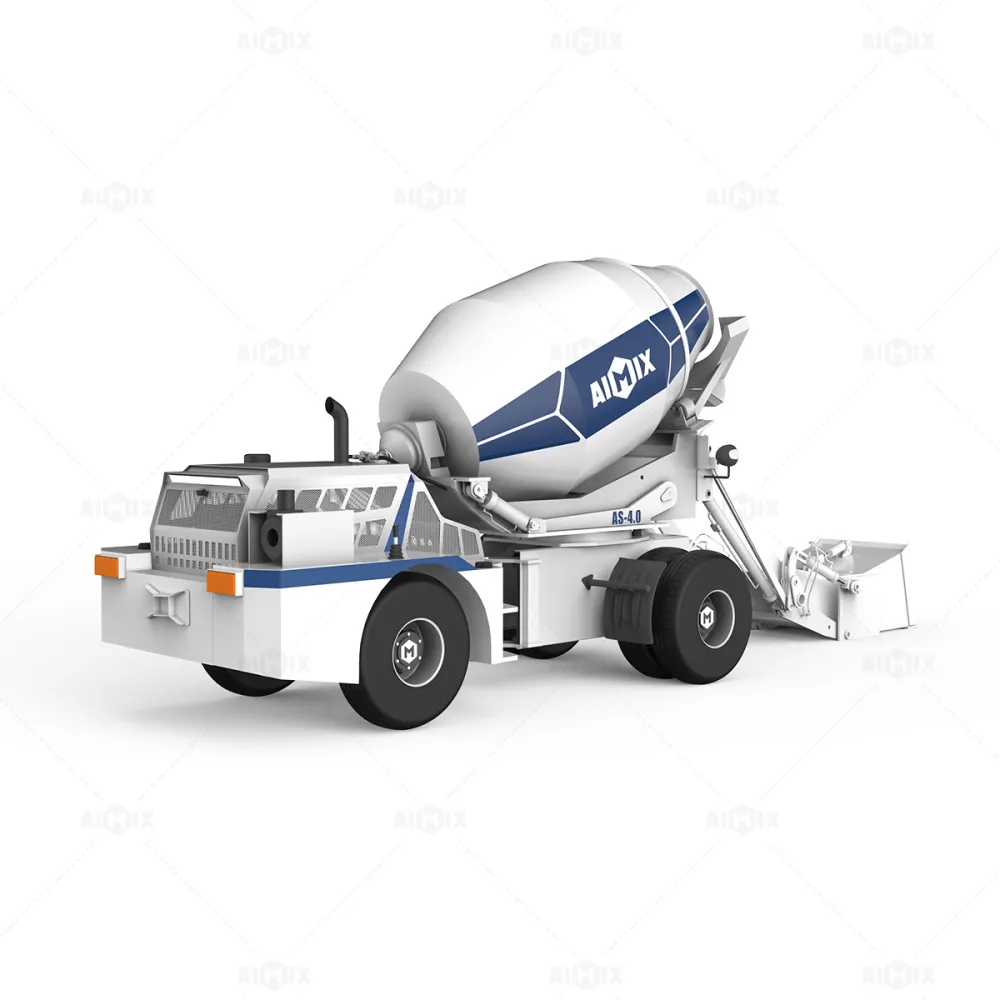

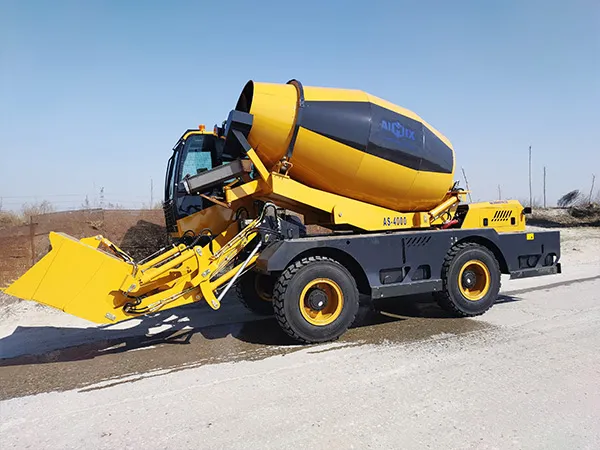

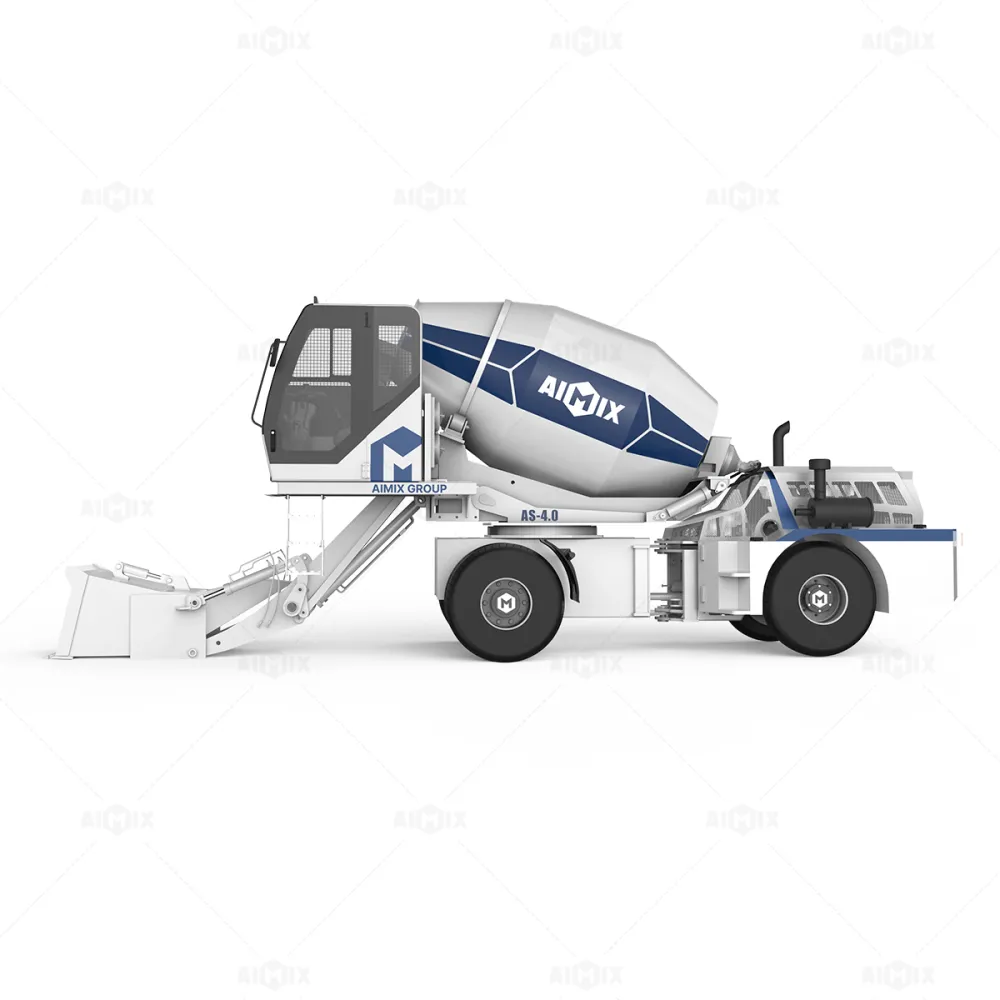

AIMIX AS-4.0 4 cubic meter self-loading concrete mixer truck is carefully built by Henan Guoli Micos Technology Co., Ltd., a leading enterprise in the field of Chinese construction machinery and equipment. It ranks second in sales in the AIMIX self-loading concrete mixer truck series. The vehicle has a single unloading capacity of 4 cubic meters and an output of 16-20 cubic meters per hour, which can provide efficient and continuous concrete supply for medium-sized projects. It is equipped with an automatic loading system, four-wheel drive, an integrated driving operation system and an independent water supply and cleaning system. The front cab has a good view and low noise, the articulated frame is highly flexible, and the 270-degree rotatable mixing tank is convenient for multi-directional unloading. AIMIX is also committed to providing customers with customized solutions and high-quality products.
Advantages and features
1. Efficient production: 4 cubic meters of material can be discharged at a time, and the output is 16-20 cubic meters per hour, which can meet the needs of medium-sized projects.
2. Intelligent configuration: It has automatic feeding system and integrated driving operation system, which is easy to operate.
3. Comfortable experience: The front cab has a good view and low noise.
4. Flexible design: articulated frame, 270-degree rotatable mixing tank, flexible unloading.
5. Intimate service: AIMIX provides customized solutions.
6. Complete certification: With ISO and CE international certification, quality is guaranteed.
Application Scenario
It is widely used in urban and rural housing construction, municipal projects, industrial floor pouring and other fields. Whether it is urban infrastructure construction, rural housing renovation, or construction projects in remote areas, this mixer truck can show its prowess and is an ideal choice for all kinds of builders and construction teams.
