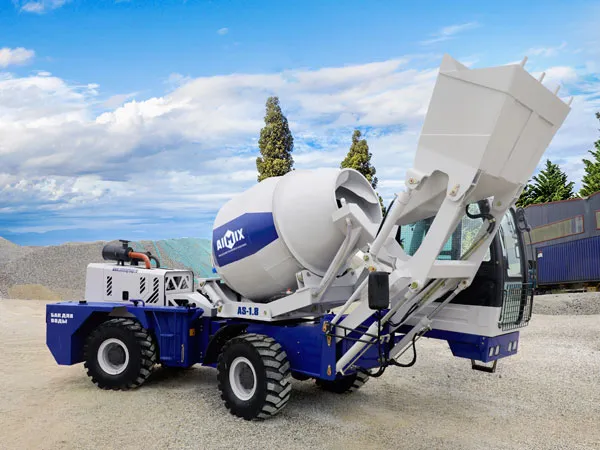

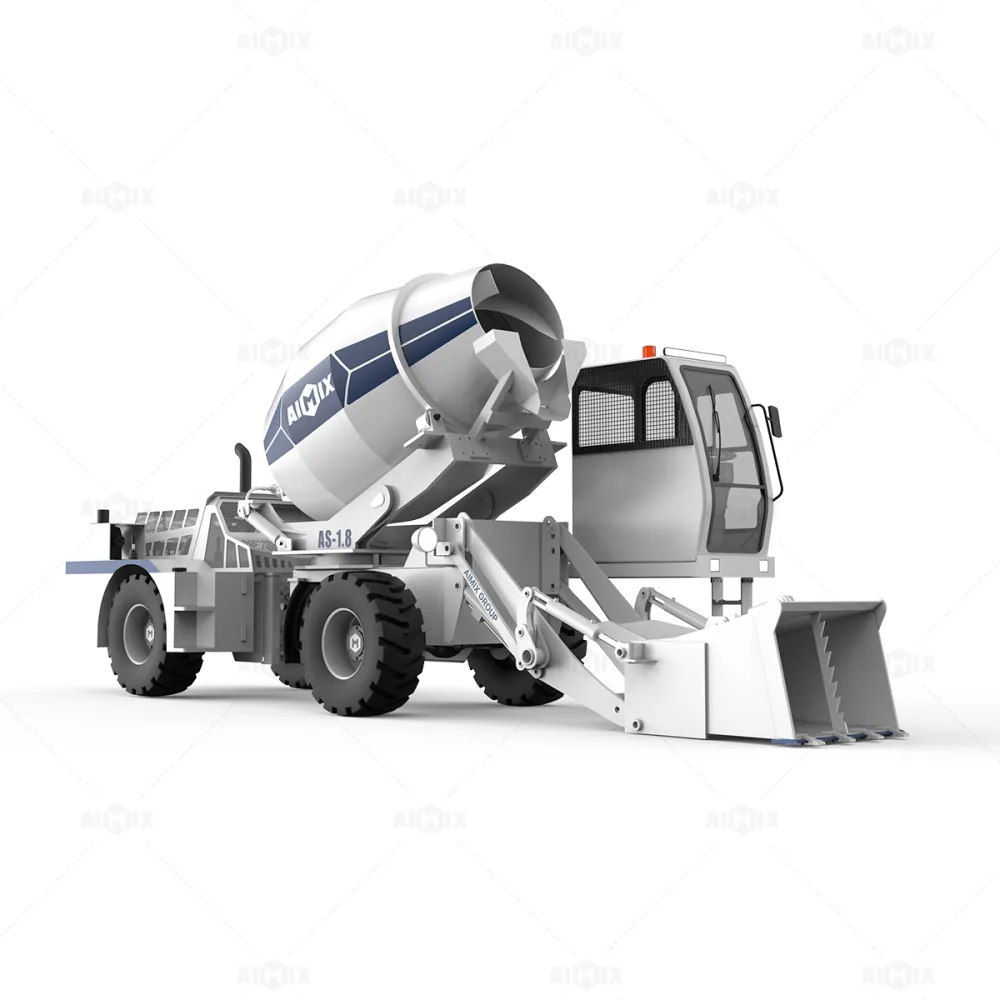

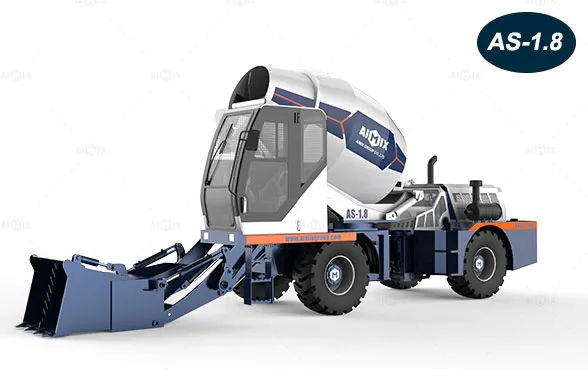

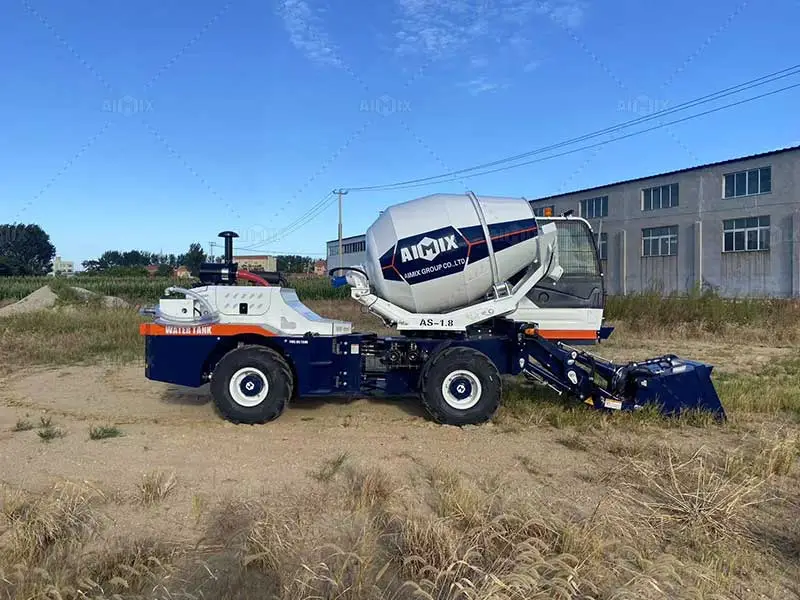

AIMIX AS-1.8 High - efficiency Self - loading Concrete Mixer Truck for Small Projects, Rural Construction in Tight Spaces

Don't miss out on this high - performance AIMIX AS-1.8 self - loading concrete mixer truck! Contact us now to submit an inquiry and get the best solution for your construction projects.
AIMIX Group Co., Ltd Zhengzhou, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250620154704/AS-1.8_Self_Loading_Concrete_Mix_Truck.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250620154704/AS-1.8_Self_Loading_Concrete_Mixer_Truck.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250620162635/AS-1.8-Self-Loading-Mixer-3.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250620162635/AS-1.8_Self_Loading_Mixer.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250623103031/AS-1.8_Self_Cement_Mixer.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250624173643/1.8(2.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250625141007/Rear_hood.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250625141007/driving_cab.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250625141007/loading_bucket.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/682d89054527840c60fb0d2e/682e7f724527840c60fb20ca/20250625141007/mixing_drum.jpg

Recommended Products

Product Parameters
Main parameters
model: AS-1.8
dimensions(L×W×H): 7050×2400×2700
wheelbase(mm): 2450
total weight(kg): 6000
max speed(km/h): 30
max climbing ability(°): 35
min turning radius(mm): 4500
min ground clearance(mm): 200
engine power(kw): 78
fuel tank capacity(L): 90
hydraulic system total capacity(L): 90
oil capacity(L): 16
water tank capacity(L): 450
water supply method: time relay and mechanical relay
mixing tank geometric capacity(L): 2500
mixing tank rotation speed(r/min): 16
Product Details
Product Introduction
The AIMIX AS-1.8 self-loading concrete mixer truck is an excellent solution for small construction needs. As a member of the AIMIX series, it stands out for its compact design, making it highly maneuverable and perfect for tight spaces. With a batch mixing capacity of 1.8 cubic meters and an output of 7-9 cubic meters per hour under normal conditions, it is ideal for projects with a daily demand of 30-80 cubic meters. The truck is ISO and CE certified to ensure quality and reliability. The truck features an integrated transport and mixing design, which not only saves time but also reduces costs. Its low fuel consumption and easy maintenance make it an affordable choice for your construction projects.
Advantages and features
1. Excellent maneuverability, small size, small turning radius, suitable for operation in narrow spaces.
2. Integrated design of transportation and mixing to improve working efficiency.
3. Low fuel consumption, reducing operating costs.
4. Simple operation, easy maintenance, saving time and effort.
5. It has automatic loading, precise weighing system, efficient mixing system, built-in water tank, flexible movement and multi-angle unloading functions.
6. Complete certification: With ISO and CE international certification, quality is guaranteed.
Application Scenario
This self-loading concrete mixer truck is suitable for rural housing construction, rural roads and infrastructure projects, small municipal projects and construction in confined spaces. It meets the needs of customers in the small construction market, especially in rural areas or projects with limited space.
Corporate Information
AIMIX Group Co., Ltd
Service Guarantee
Service Information
Address
9th Floor, China Central E-commerce Port, Erqi District, Henan Province
Advisory Message
Pre-sales advice
After-sales service
1. Warranty period: 12 months from the date of purchase, covering major malfunctions and material defects of the equipment.
2. Customer care: Regularly visit customers to understand equipment usage and customer satisfaction, and provide necessary support
3. Spare parts supply: There are more than 100 service outlets in the world, 6 branches and dedicated spare parts warehouses to ensure the rapid supply of commonly used accessories and reduce equipment downtime.
